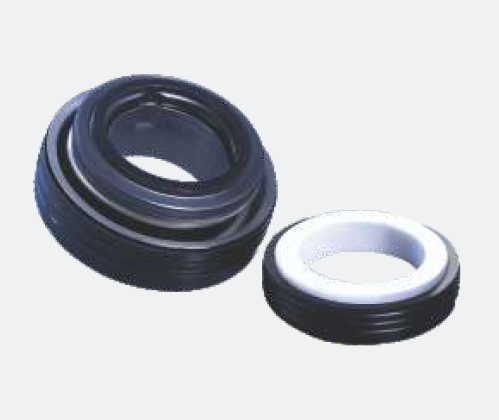

Auto cooling pump seal model MY-FT/6SB

• Operating Limits:
  1.Pressure:≤0.5MPa
  2.Temperature: -40℃~+140℃
  3. Speed:≤10m/sec

  Material:
  Rotary ring (Ceramic/SiC)
  Stationary ring (Carbon/SiC)
  Secondary seal(NBR/HNBR/EPDM/VITON)
  Spring & Other parts (SUS304)

  Applications: Used in mini-water pumps and gasoline engine pumps.
